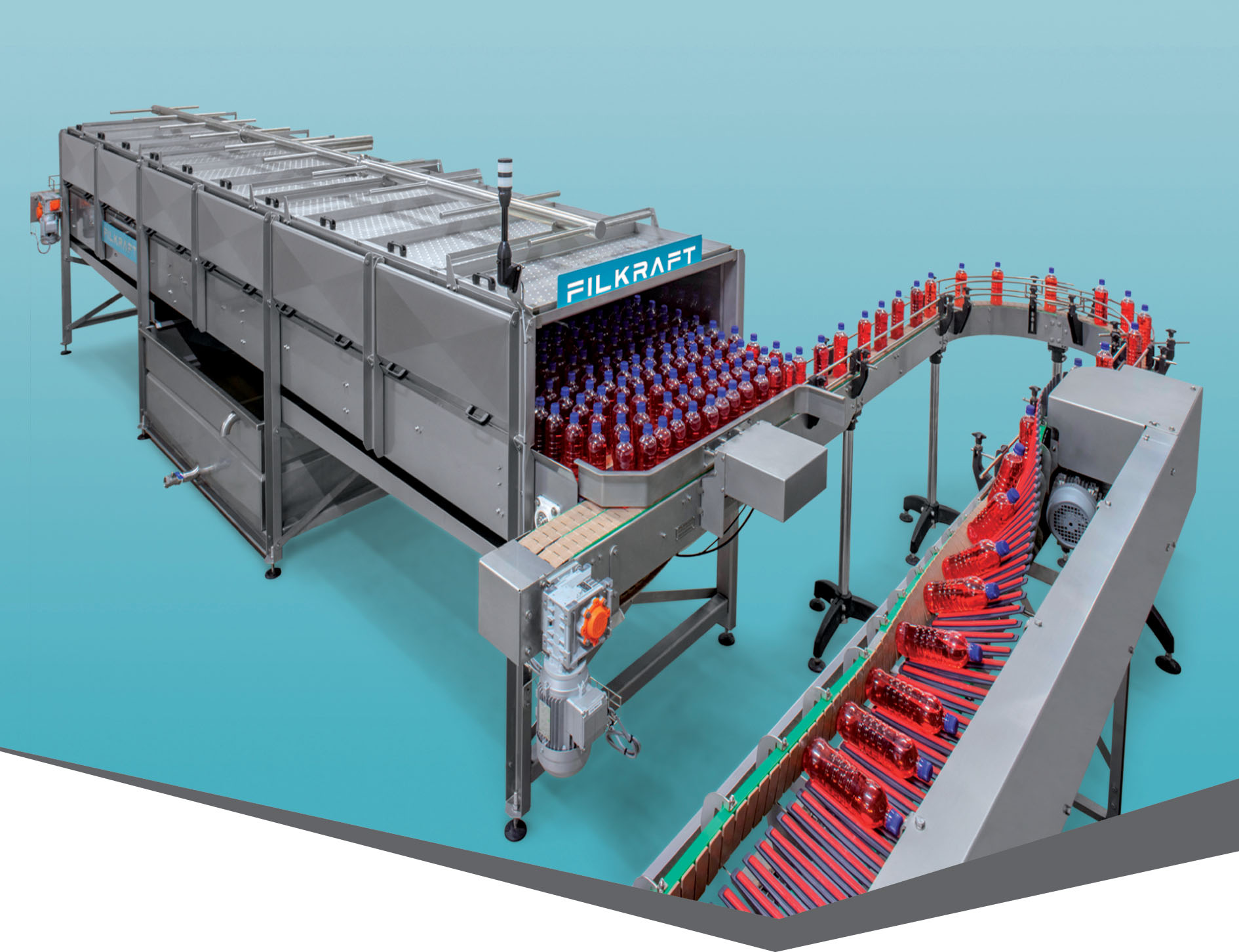

Bottle Cooling Tunnel

For lowering the temperature of filled bottles after hot-fill process

Video

Under video

Cooling capacity up to 9 000 bottles/hour
ΔT 75°C to 40°C with 30°C cooling water
Cooling time 10min
Container sizes 100ml to 5000ml
Container types PET, HDPE, Glass

Under lead image

Pusher at the start to prevent congestion of bottles.

Hinged covers on the side provides easy access for cleaning and maintenance.

Collection tank with two woven wire screens to protect circulation pump from foreign objects.

Ball valve level control in tank.
